iK6BAK/B warc beacons
 Since July 1988 !
(please note that IK6BAK/B on 24.915 MHz is now
IQ6FU/B, ARI club station in Fano JN63MU)
 Home



IK6BAK BEACON

   View online reports  -  Send new online report

                QSL via LOTW and EQSL.CC to ik6bak/b


Technical Info

17 meters CW/RTTY QRP beacon (since 1988 !)

Frequency:............ 18100 KHz ( 18.100 MHz )            Kc
Power:................... 1 Watt (QRP)
Antenna:................ Inv. vee dipole
Service:................ Continuous
Mode:..................... A1A (CW) and RTTY (FSK)
Messages:.............
    CW   > vvv de ik6bak/b cw rtty beacon qrp 1W www.morsekey.net
    RTTY > RYRYRYRY ZCZC de ik6bak/b cw rtty beacon
            qrp 1 w - locator: jn63kr
            online reports: www.morsekey.net - qsl via www.eqsl.cc
            email: ik6bak(at)gmail.com - thanks 73 de ik6bak - NNNN
Speed:................... CW 10 Wpm - RTTY 45,45 baud shift 170 hz

30 meters CW/RTTY QRPP beacon

Frequency:........... 10139 KHz ( 10.139 MHz )               Kc
Power:.................. 0.1 Watt (QRPP)
Antenna:............... 1/4 wave vertical
Service:............... Continuous
Mode:.................... A1A (CW) and RTTY (FSK)
Messages:.............
    CW   > vvv de ik6bak/b cw rtty beacon qrpp 100mw www.morsekey.net
    RTTY > RYRYRYRY ZCZC de ik6bak/b cw rtty beacon
            qrpp 100mw - locator: jn63kr
            online reports: www.morsekey.net - qsl via www.eqsl.cc
            email: ik6bak(at)gmail.com - thanks 73 de ik6bak - NNNN
Speed:.................. CW 10 Wpm - RTTY 45,45 baud shift 170 hz



17 and 30 meters CW/RTTY id.

On 2008 a primitive 2816 Eprom has been replaced after 20 years of honorable service !
New CW/RTTY identifier is designed by Giorgio i6MAT, messages can be easily stored and
managed via Serial Port RS-232, later version also via USB.
For any detail please contact i6MAT, any info on qrz.com



Managing messages with Hyper Terminal

Beacon identifier

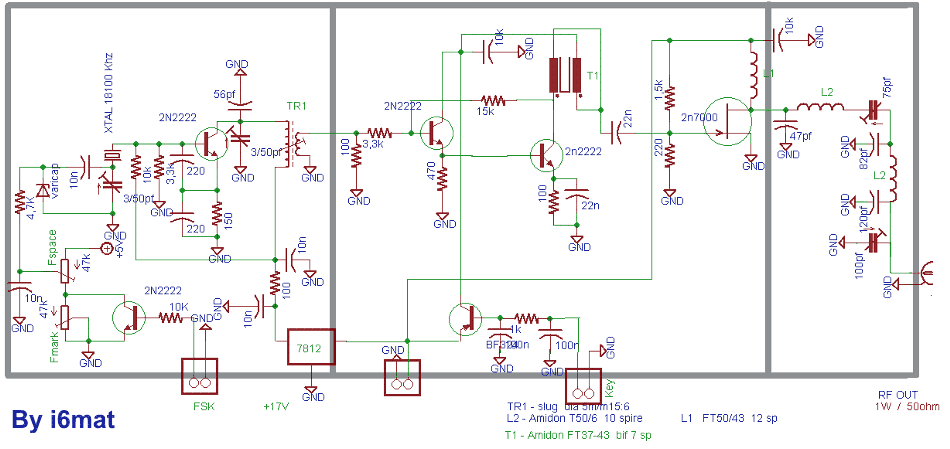

17 meters TX (1 W - QRP)
By i6MAT

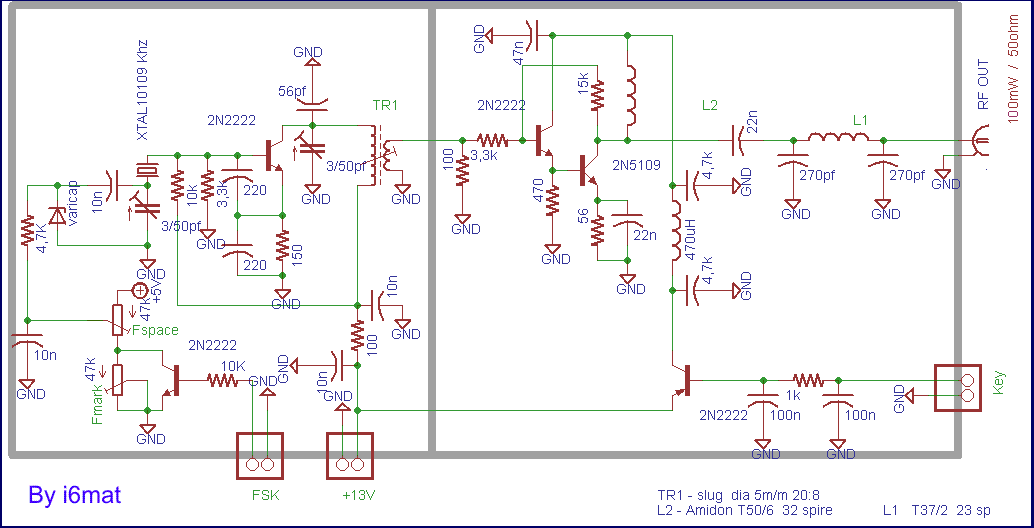

30 meters TX (0.1 W - QRPP)
By i6MAT
